Thermal conductivity coefficient λ for + = 0,022 W/mK

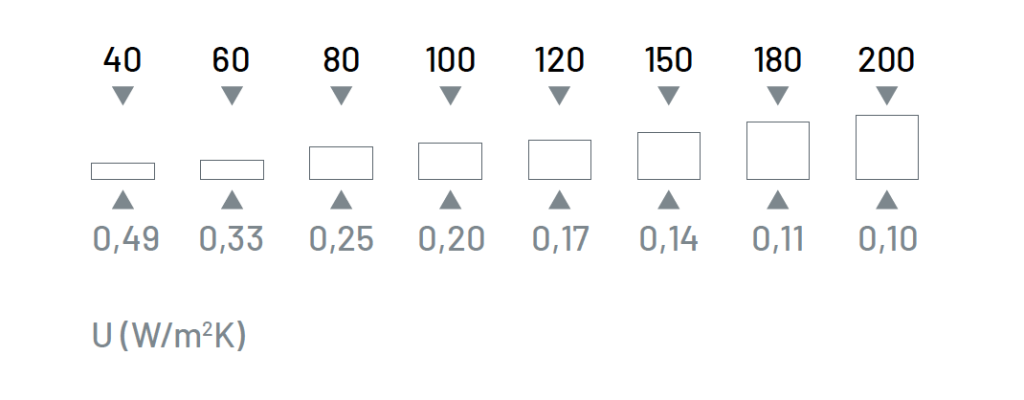

Initial value of λ = 0,022 W/mK (Applus). Thermal transmittance is determined in accordance with UNE-EN 14509, taking into account the effect of the ageing of the insulating core.
The new formula is available with a thermal efficiency of 0.0169 W/mK, the best conductivity on the market.

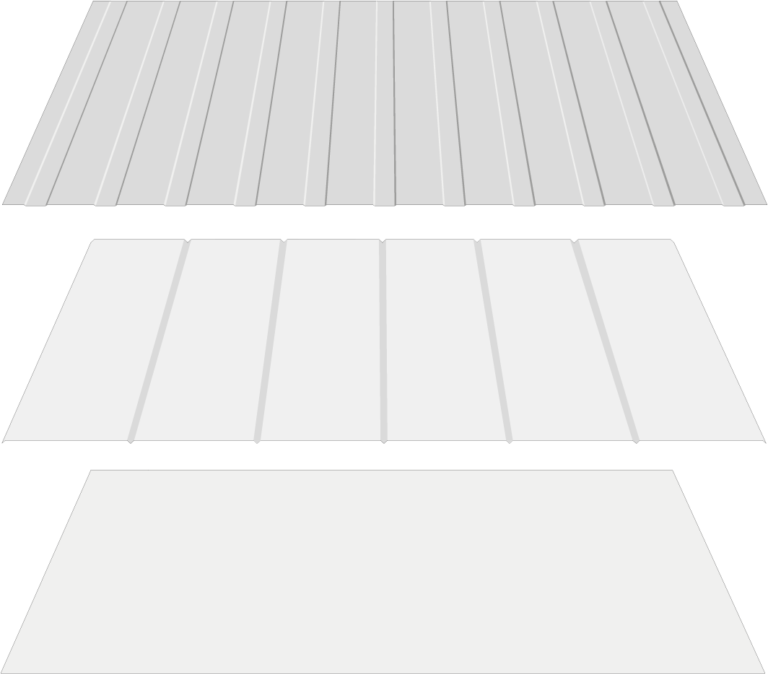

Sheet profile finishes available
Ribbed
Wavy
Smooth
Certifications and Guarantees
BASE MATERIAL
PRE-COATED GALVANIZED STEEL SHEET
Steel S220/S250 from Z140 to Z275 thickness 0.4 – 0.7 mm.
UNE-EN 10346 for galvanized coatings and UNE-EN 10169 for organic coatings.
COATINGS
STANDARD
White polyester lacquer, 25 µm
FINISHING OPTIONS
HDX Z275 granite, 55 µm
HPS 200 µm
PVDF 33 and 55 µm
PVC 100 and 200 µm
PET 55 µm
COLORS
Standard color: Pyrenees White 1006
Other RAL colors on request
INSULATING CORE
PYR (POLYISOCYANURATE)
Density: 40 Kg/m³ ± 2

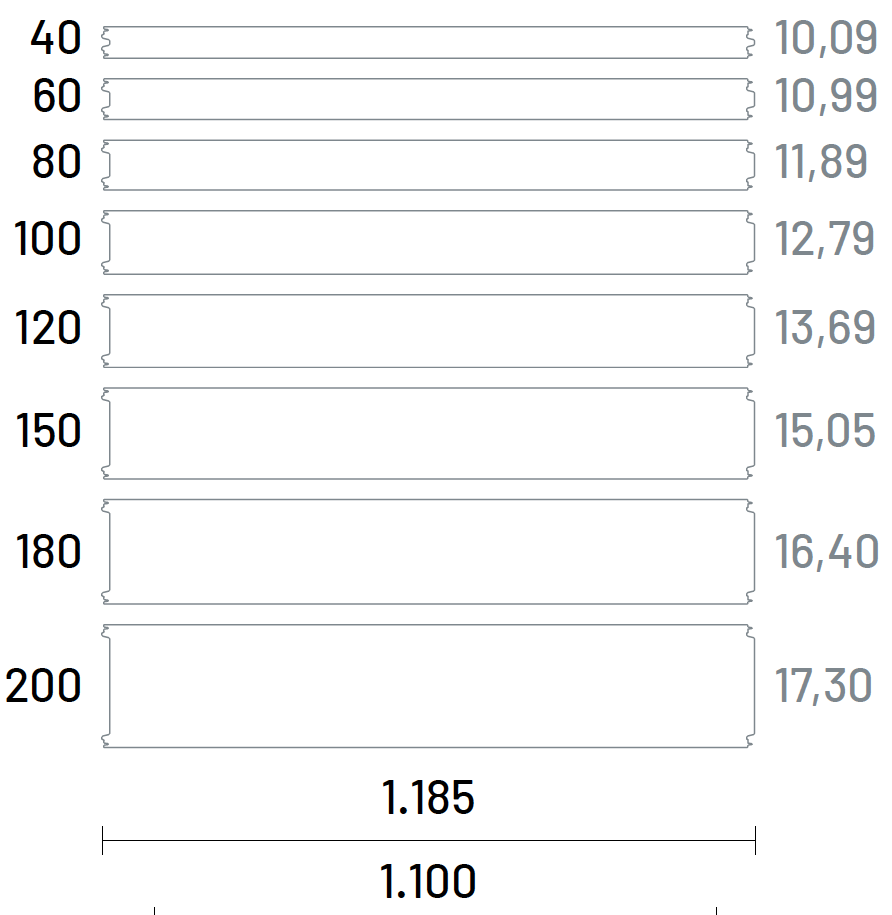

THICKNESS (mm)
Weight per m2 of panel with 0.5/0.5 mm sheet (kg/m2)
Two proper widths available (mm)

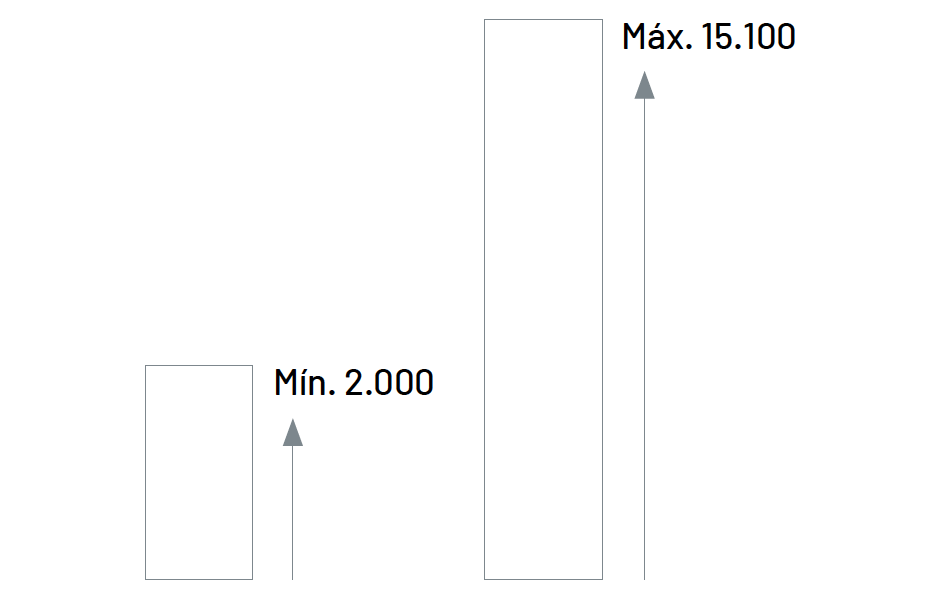

LENGTH (mm)
THICKNESS (mm)

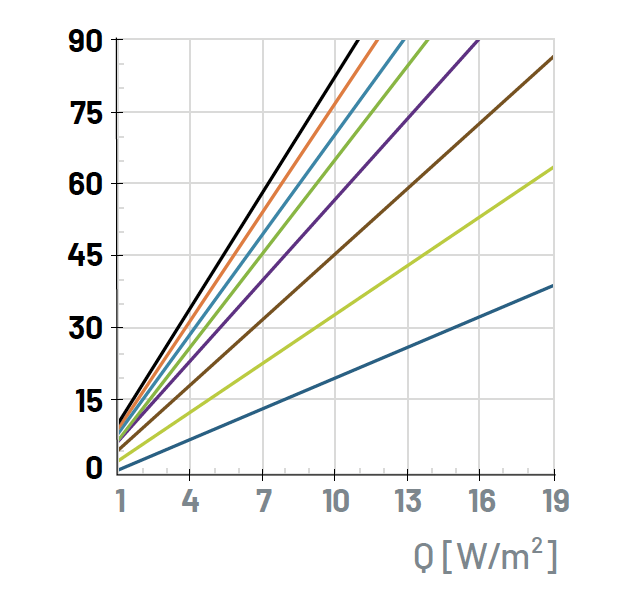

TEMPERATURE ΔT ºC
Panel thickness (mm)

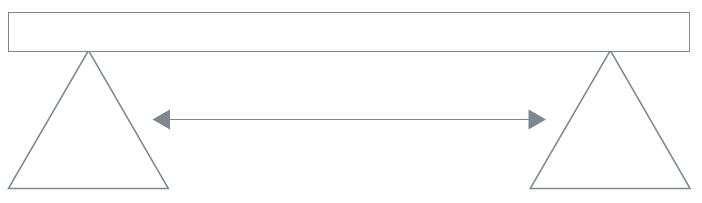

PRESSURE LOADING AT 2 SUPPORT POINTS
THICKNESS (mm)

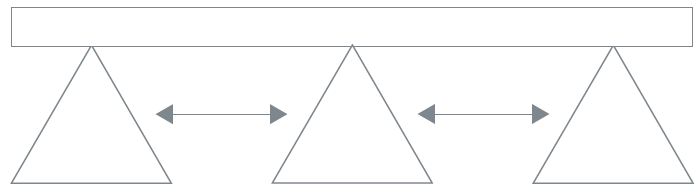

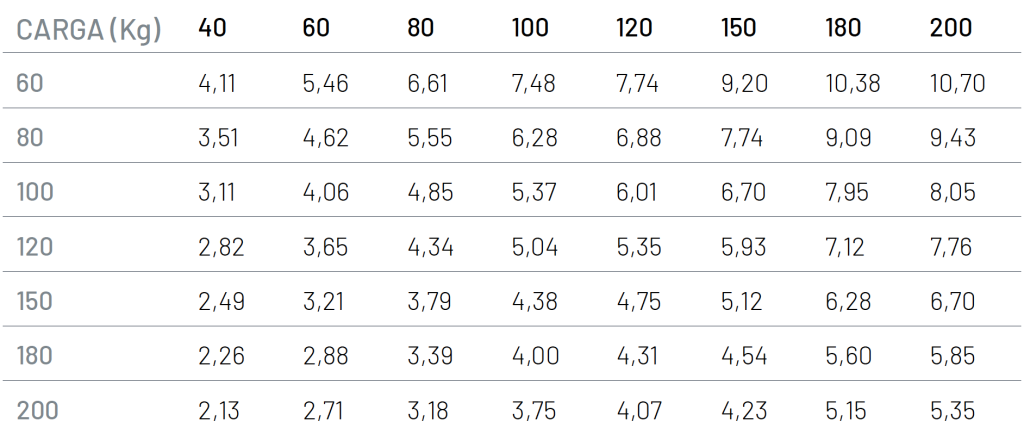

PRESSURE LOADING AT 3 SUPPORT POINTS
THICKNESS (mm)
Load (daN/m2) for axis < L/200 (1 Kgf - 0.98 daN), panel with 0.5/0.5 mm sheet. Values for uniformly distributed loads. The permissible gap between supports in meters.
